Tower Inspections

INSPECTOWER™ helps you inspect efficiently, calculate accurately, and report consistently — turning field measurements into the results that protect your client's investment and your firm's reputation.

INSPECTOWER 3 · v2.1.7

Tower inspections are an important source of revenue for many firms, and a vital tool for owners and users protecting their investment. Competition is fierce, so inspectors must be efficient to stay profitable — yet a reputation is on the line in every job, so results must be correct.

Guymast Inc. understands these pressures and provides software to improve inspection efficiency and accuracy while delivering clear, consistent reports. As far as we know, Guymast is the only supplier of commercially available software dedicated to the organization, calculations, and reporting necessary for professional tower inspections.

INSPECTOWER 3

From field measurements to finished results

Guy tension & geometry

  • Guy tensions at various points in the guy cable
  • Guy tensions from vibration (pulse method)
  • Guy tensions from measured tower intercept (sag method)
  • Tension change due to temperature
  • Properties of 2-segment composite guys

Surveying by transit

  • Anchor location using transit
  • Guy length by transit
  • Mast alignment by transit

Turnbuckle adjustments

  • Adjustment for tower alignment
  • Adjustment for rotation
  • Adjustment for tension
  • Guy-length adjustments — reducing time and effort in the field

Reporting

  • Calculate needed results from indirect measurements
  • Generate Temperature / Tension / Pulse charts
  • Clear, consistent reports for owners and clients
Gallery

See it in action

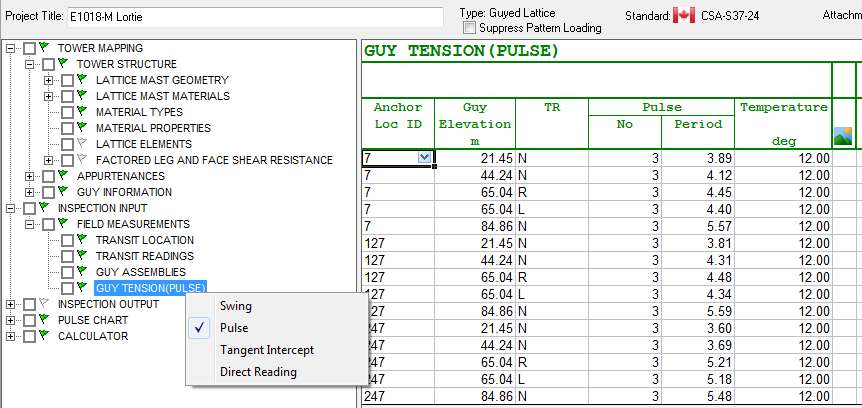

INSPECTOWER 3 screenshot 1
Screenshot 1

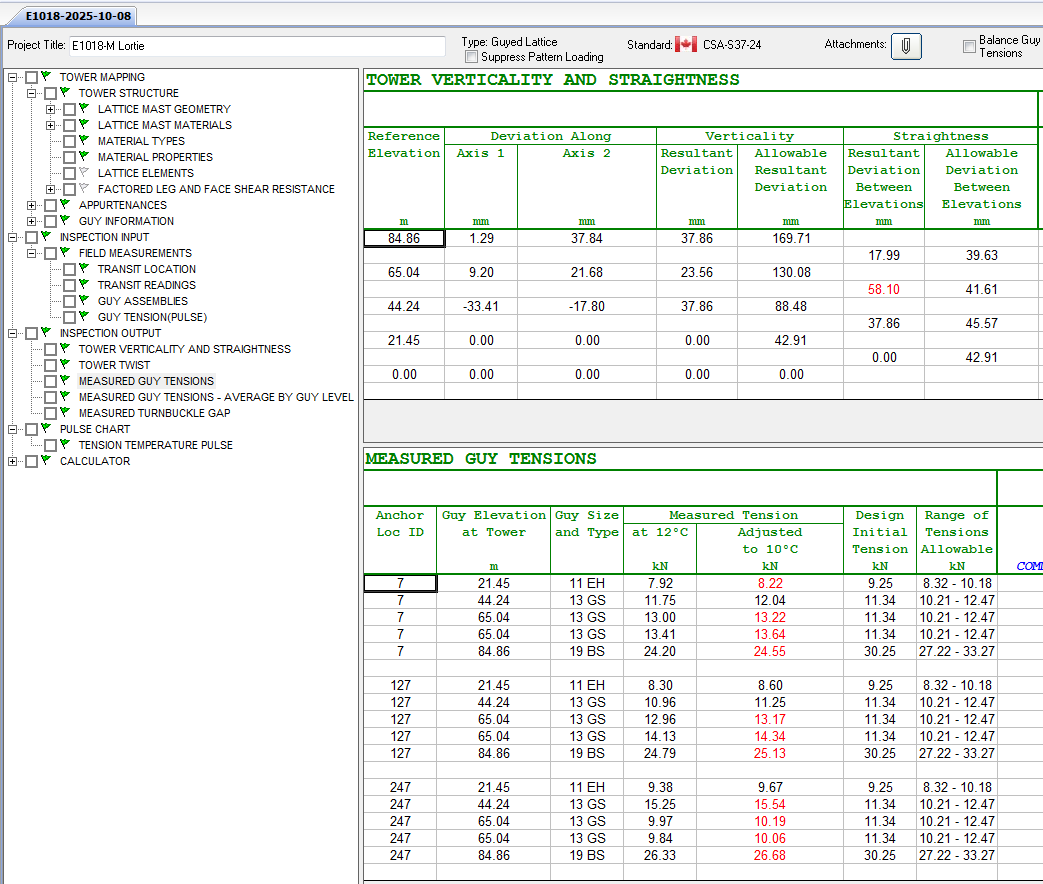

INSPECTOWER 3 screenshot 2
Screenshot 2

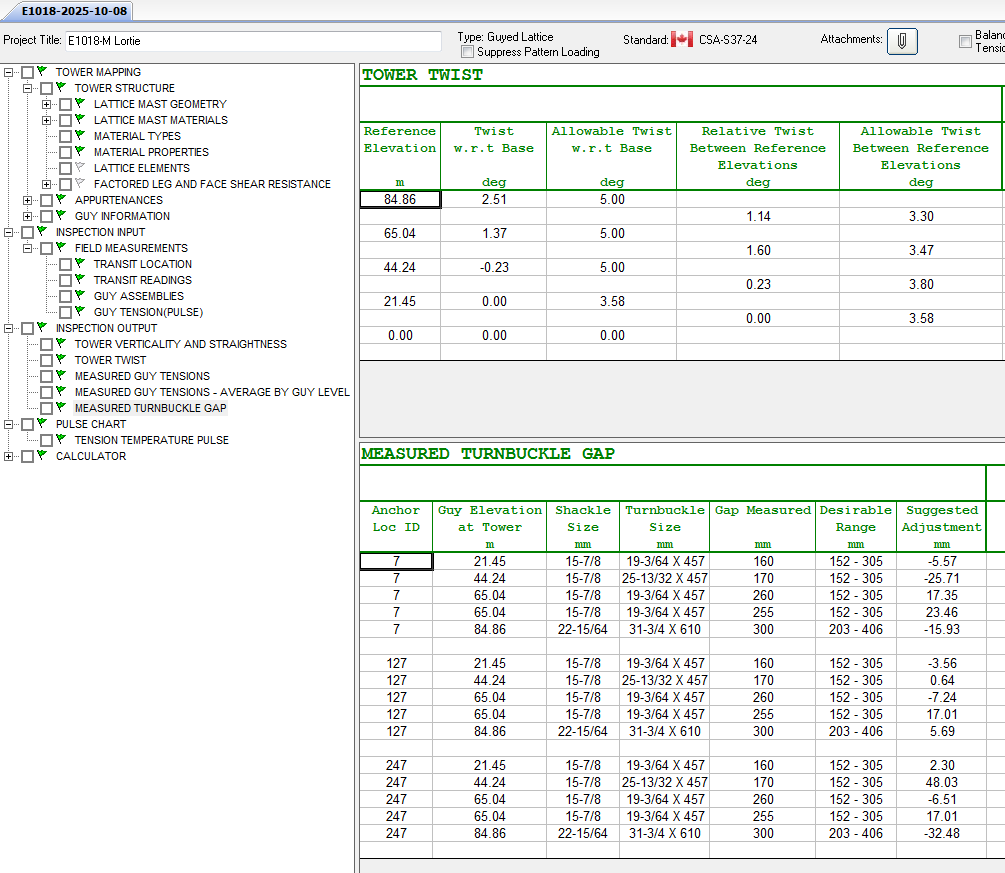

INSPECTOWER 3 screenshot 3
Screenshot 3

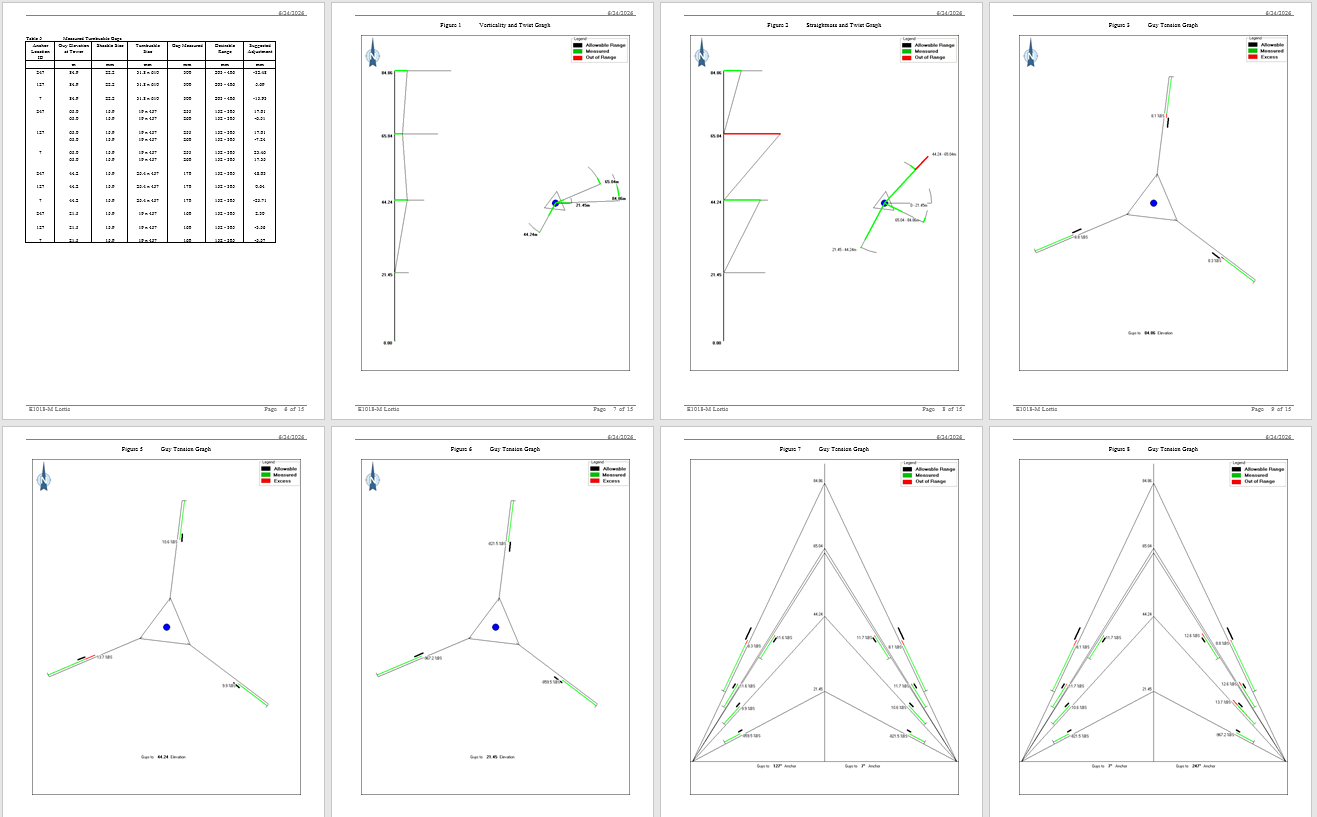

INSPECTOWER 3 screenshot 4
Screenshot 4

Make your next inspection your best

Download the free INSPECTOWER 3 Reader, or get a quote for the full toolkit.

Go to downloads Request a quote
